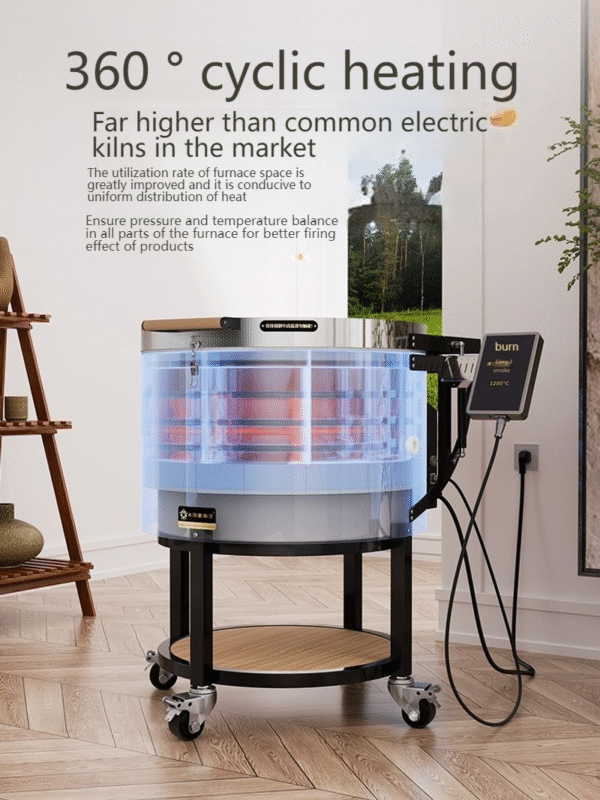

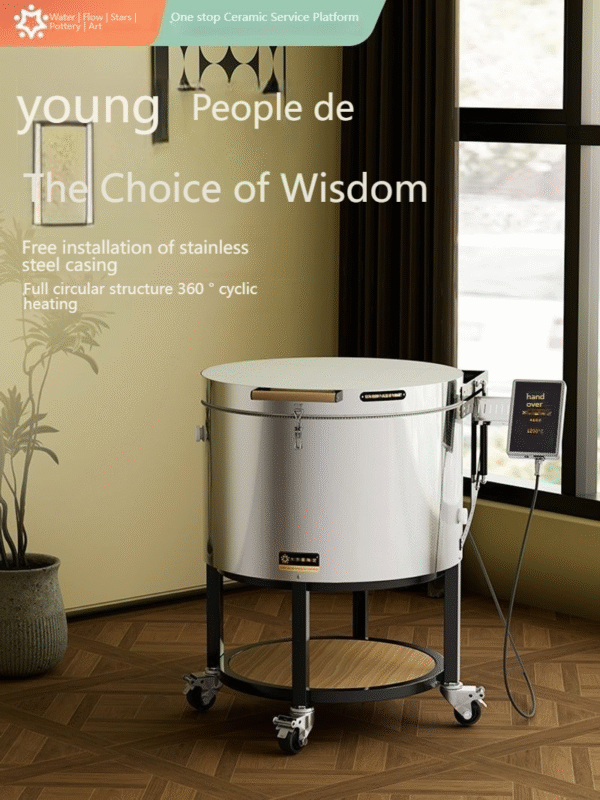

Round and Stumpy Cylindrical Ceramic Electric Kiln

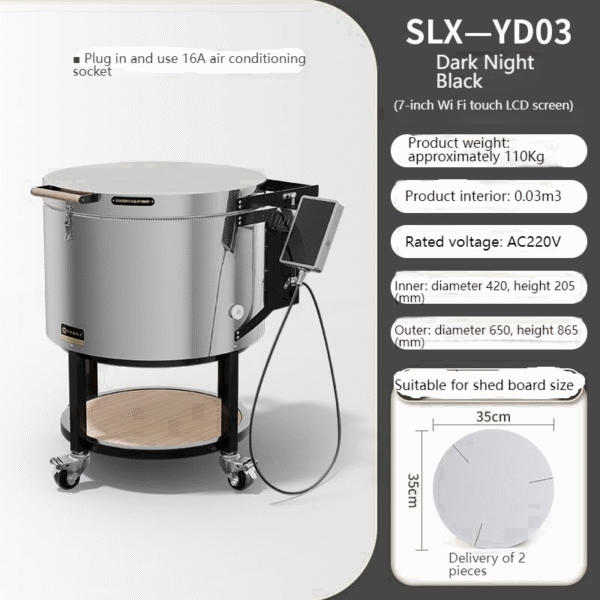

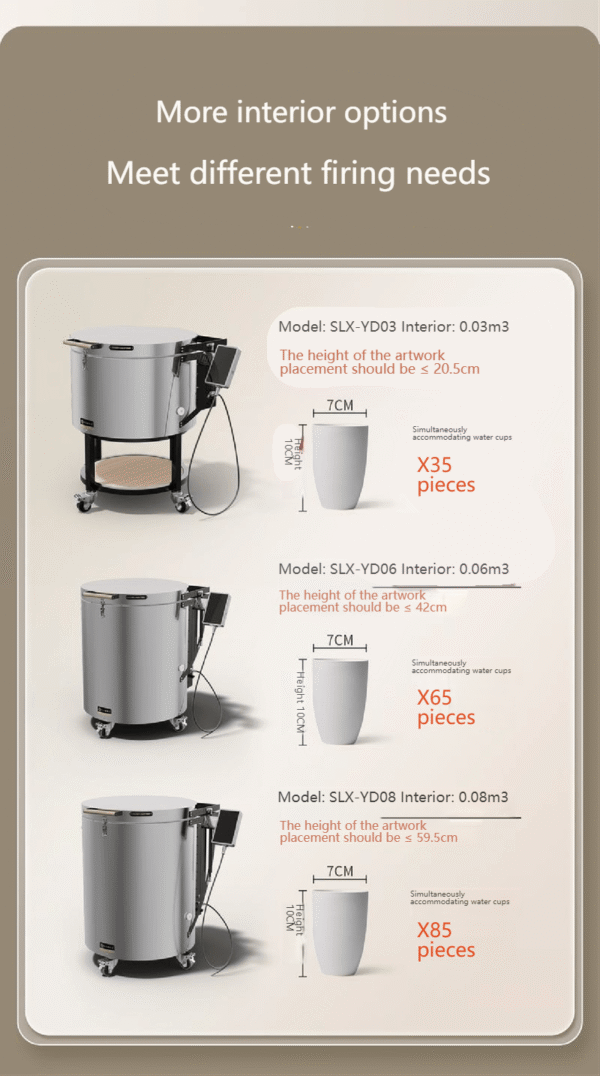

SLX-YD03

1. The equipment should be placed in a cool, ventilated, dry, and dust-free indoor environment on a level ground.

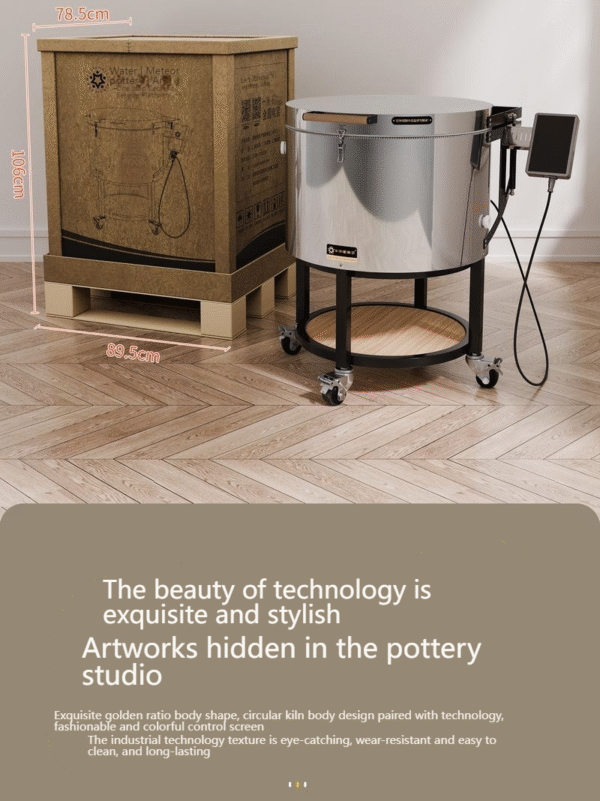

2. Doorway Requirements: Width >85cm, Height >100cm.
3. Operating environment temperature: 0～40°C in non-corrosive conditions.

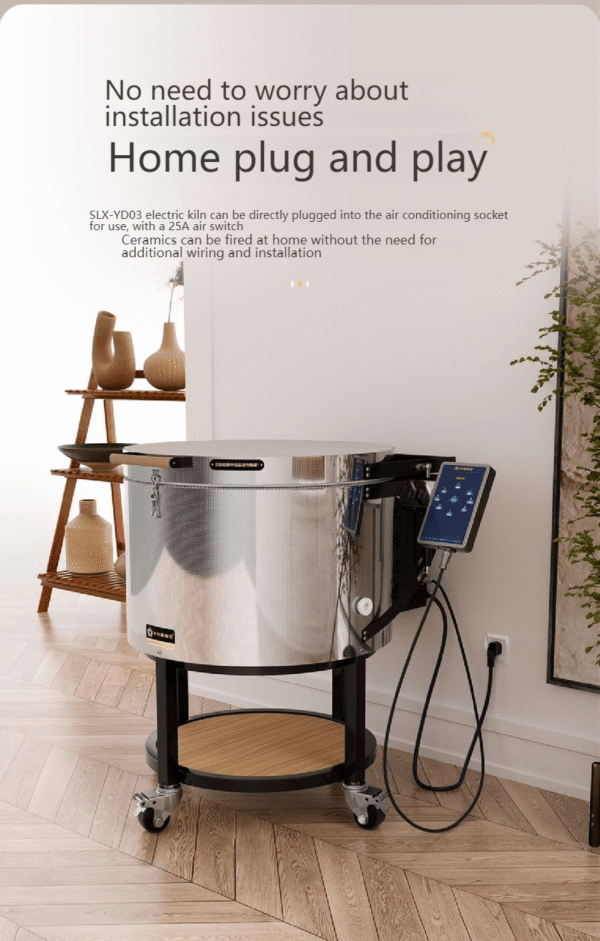

4. Use 2.5 mm² national standard copper core wire with a 25A air switch / 16A air conditioning socket.
5. Do not cover the electric kiln with any items; keep flammable and explosive materials away from the surrounding area.
6. Maintain a distance of approximately 30cm between the kiln and the wall.

SLX-YD06

1. The equipment should be placed in a cool, ventilated, dry, and dust-free indoor environment on a level ground.
2. Doorway Requirements: Width >85cm, Height >100cm.
3. Operating environment temperature: 0～40°C in non-corrosive conditions.
4. Installation Requirements: 63A air switch (without leakage protection) and 6 mm² national standard copper core wire.
5. Do not cover the electric kiln with any items; keep flammable and explosive materials away from the surrounding area.
6. Maintain a distance of approximately 30cm between the kiln and the wall.

SLX-YD08

1. The equipment should be placed in a cool, ventilated, dry, and dust-free indoor environment on a level ground.
2. Doorway Requirements: Width >85cm, Height >100cm.
3. Operating environment temperature: 0～40°C in non-corrosive conditions.
4. Installation Requirements: 63A air switch (without leakage protection) and 10 mm² national standard copper core wire.
5. Do not cover the electric kiln with any items; keep flammable and explosive materials away from the surrounding area.
6. Maintain a distance of approximately 30cm between the kiln and the wall.
