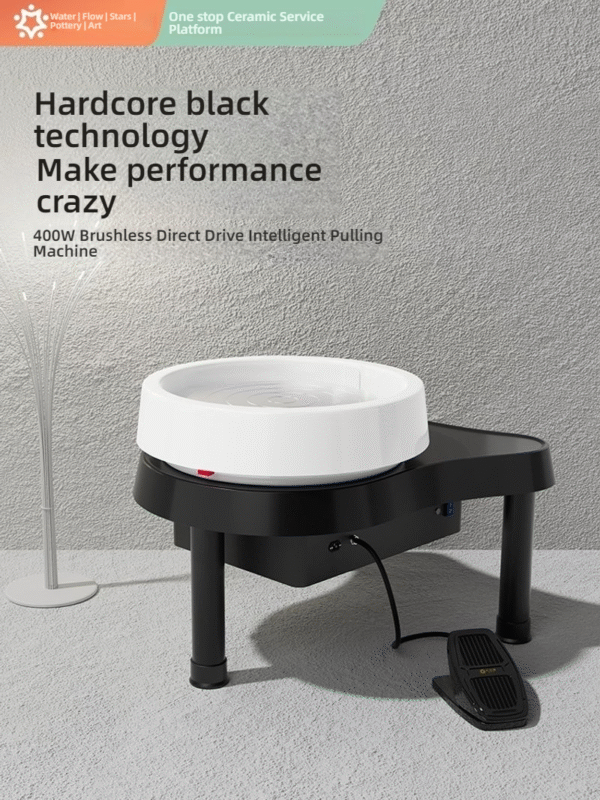

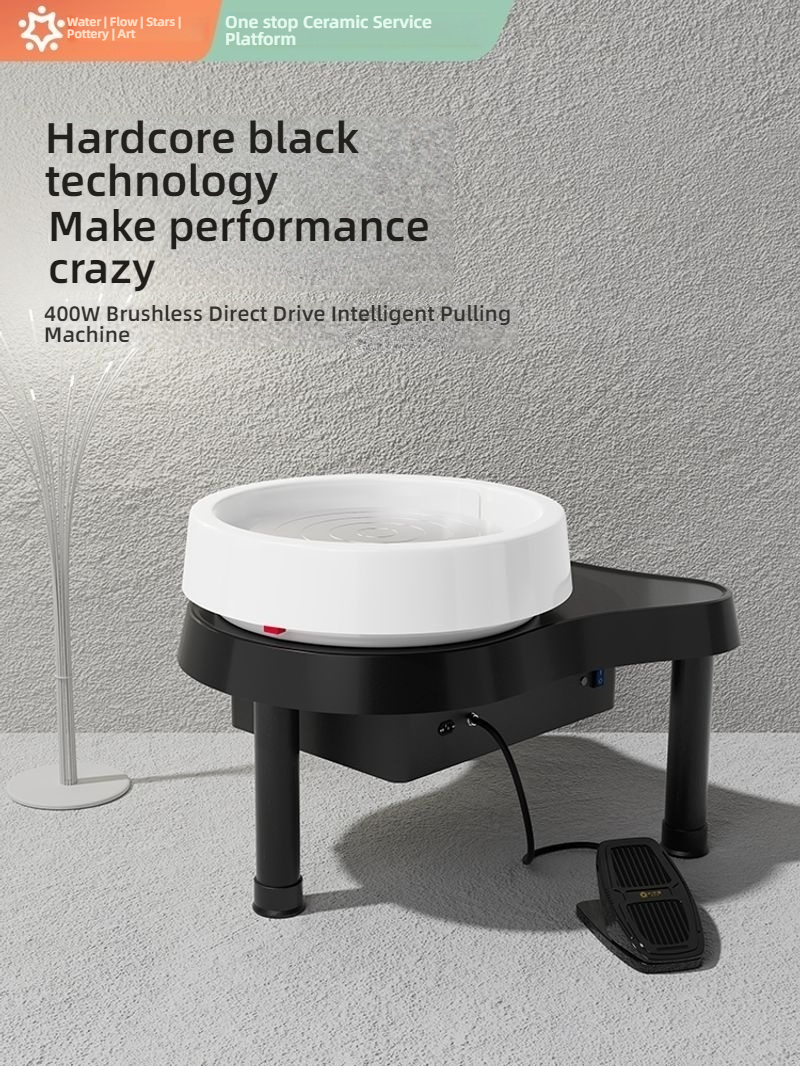

Cyclone Direct-Drive Pottery Wheel-YT-LPJ-XFY02
Product Specifications
- Dimensions: L65 × W63 × H52 cm (including water basin height)
- Turntable: Rust-resistant aluminum alloy, Diameter: Φ32 cm, Thickness: 2.5 cm
- Water Basin: Diameter: Φ46.5 cm
- Working Voltage: AC 220V
- Power: 380W
- Speed Range: 0–280 rpm
- Stability: Turntable runout ≤ 0.05 mm
- Noise Level: ≤ 48 dB
- Net Weight: Approx. 20 kg
- Speed Control: Hall-effect foot pedal + LCD touchscreen switch
- Rotation Direction: Supports both clockwise and counterclockwise rotation
Product Features
- Fully Washable Hall-effect Foot Pedal
Durable and waterproof, the Hall-effect pedal closely fits the foot for comfortable pressure control. It responds smoothly to foot strength, delivering consistent power for stable and wobble-free throwing. During trimming, it offers precise speed control to prevent clay from being flung off due to inertia. - Robust Body Design
Made with an ABS plastic tabletop and carbon steel frame that is rust-resistant and easy to clean. The surface is finished with high-temperature cured electrostatic powder coating—no spray paint—ensuring anti-static safety and enhanced durability using high-strength national standard steel plates. - Mud-resistant Water Basin
Designed to prevent mud or water from seeping into the base of the machine, offering better protection and extended lifespan. - Advanced Waterproof Foot Pedal
The Hall-effect pedal is waterproof, anti-leakage, and built to withstand over 100,000 presses. It can even be submerged in water, making it a long-lasting electronic control system. It ensures precise and stable speed control with a lifespan of over 10 years. Certified to meet IPX2 waterproof standards (GB/T4208-2017), operating safely within a DC 5V ± 0.5V range. - Safety Switch Design

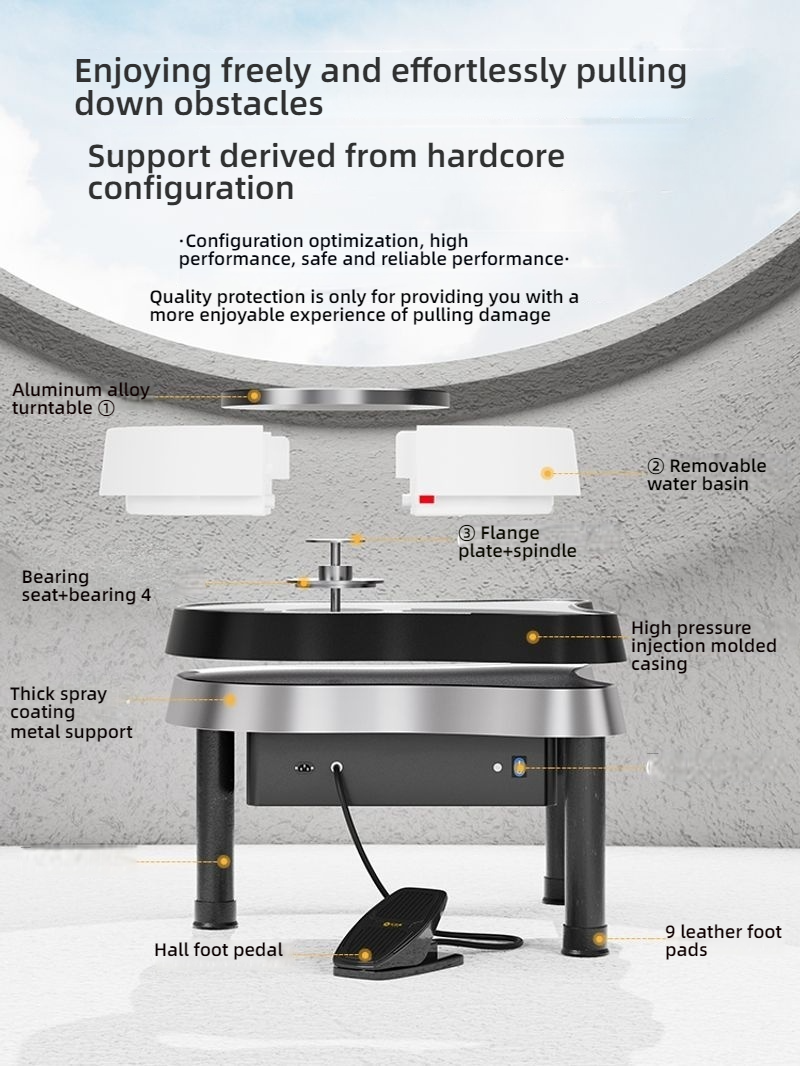

Includes a leak-proof plug, waterproof switch, motor cover, and sealing rings. Inspired by traditional furniture structures, the base is reinforced for exceptional stability and operational safety. - High-performance Waterproof Display
Equipped with a digital speed display and membrane keypad for real-time RPM monitoring and simple operation. - Integrated Stamped Construction
The entire unit is formed with a seamless stamping process, resulting in a sleek, minimalist, and modern aesthetic.
